90 Series Inward Tile-and-Slide Window

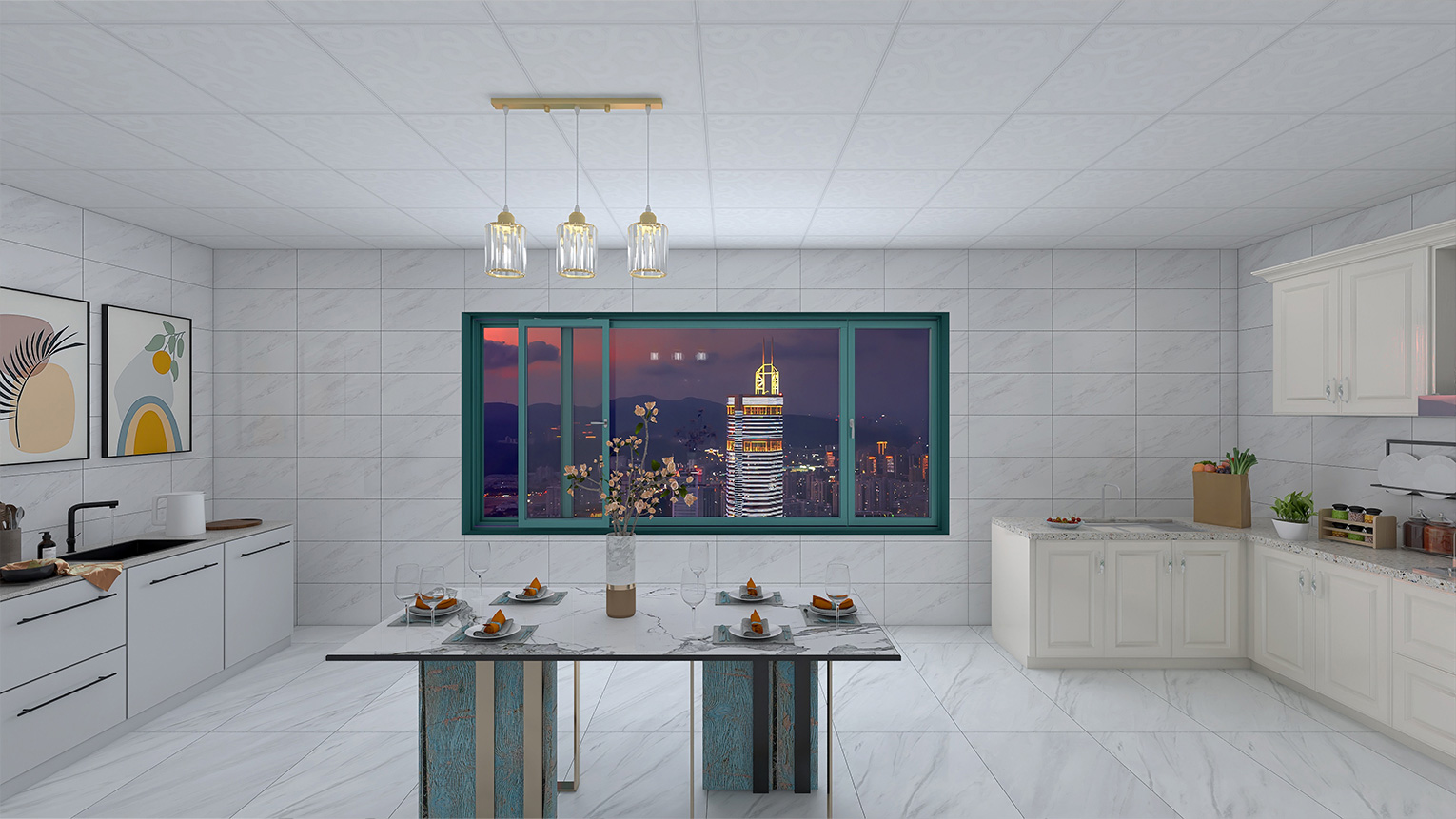

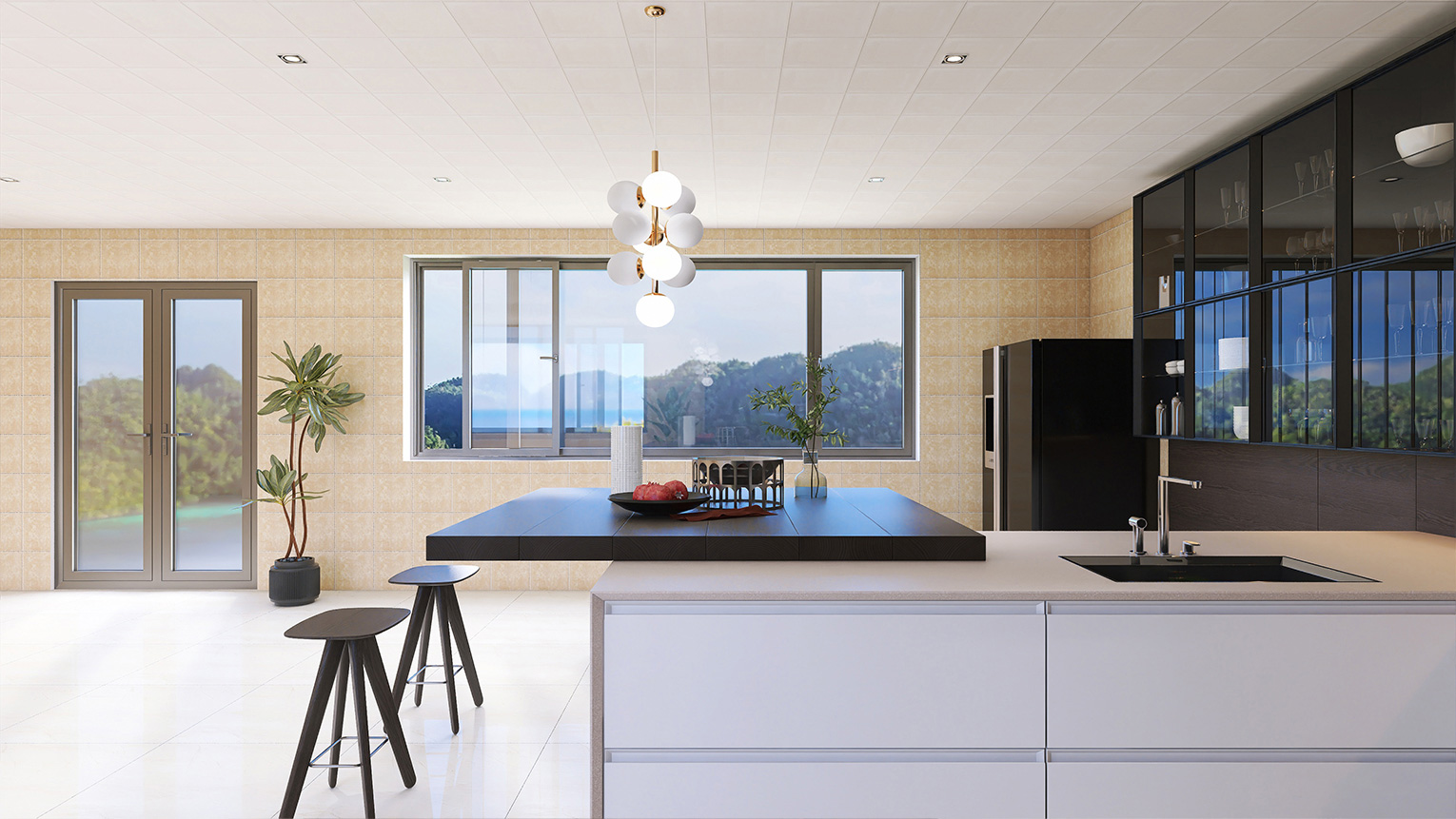

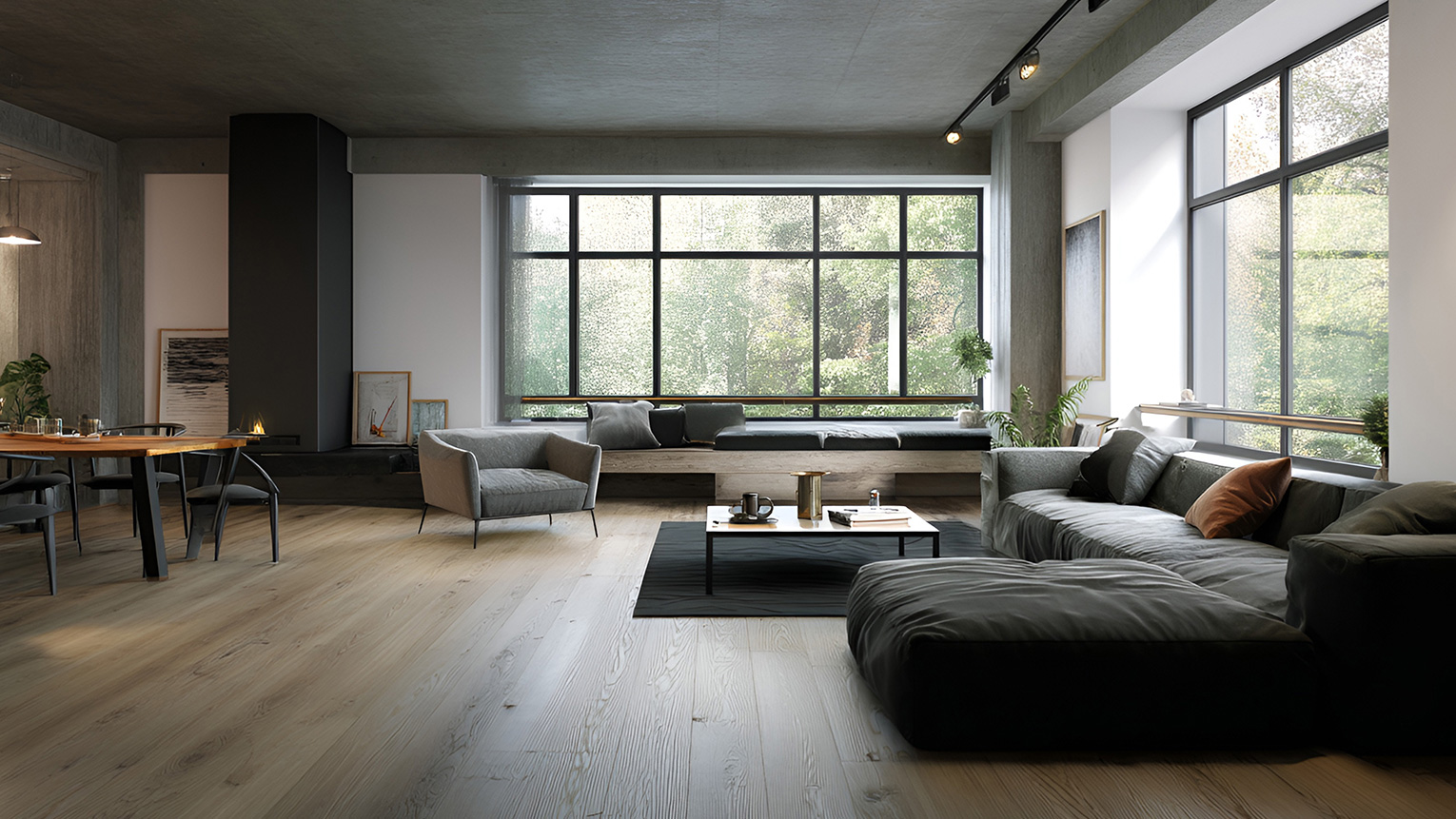

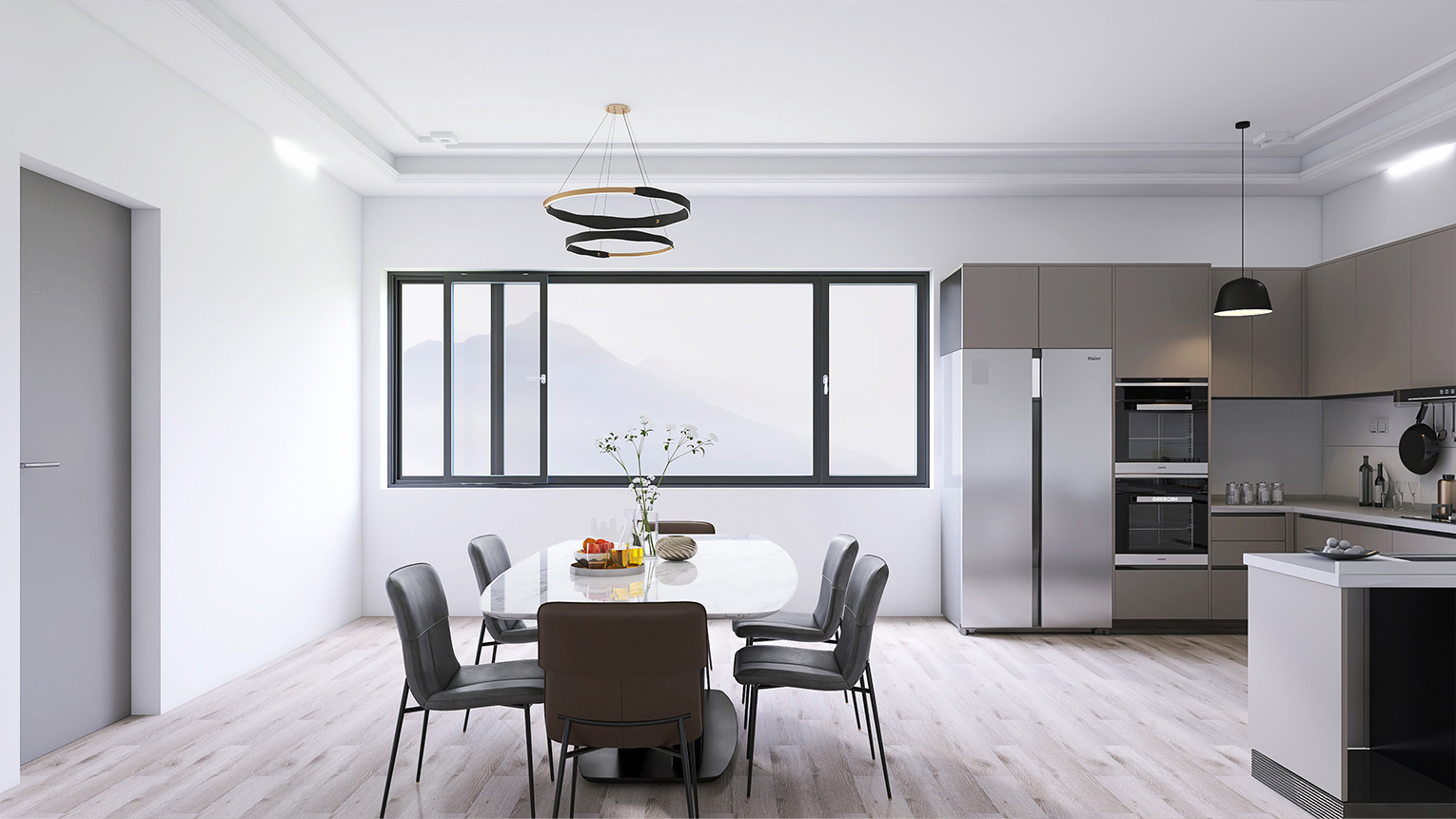

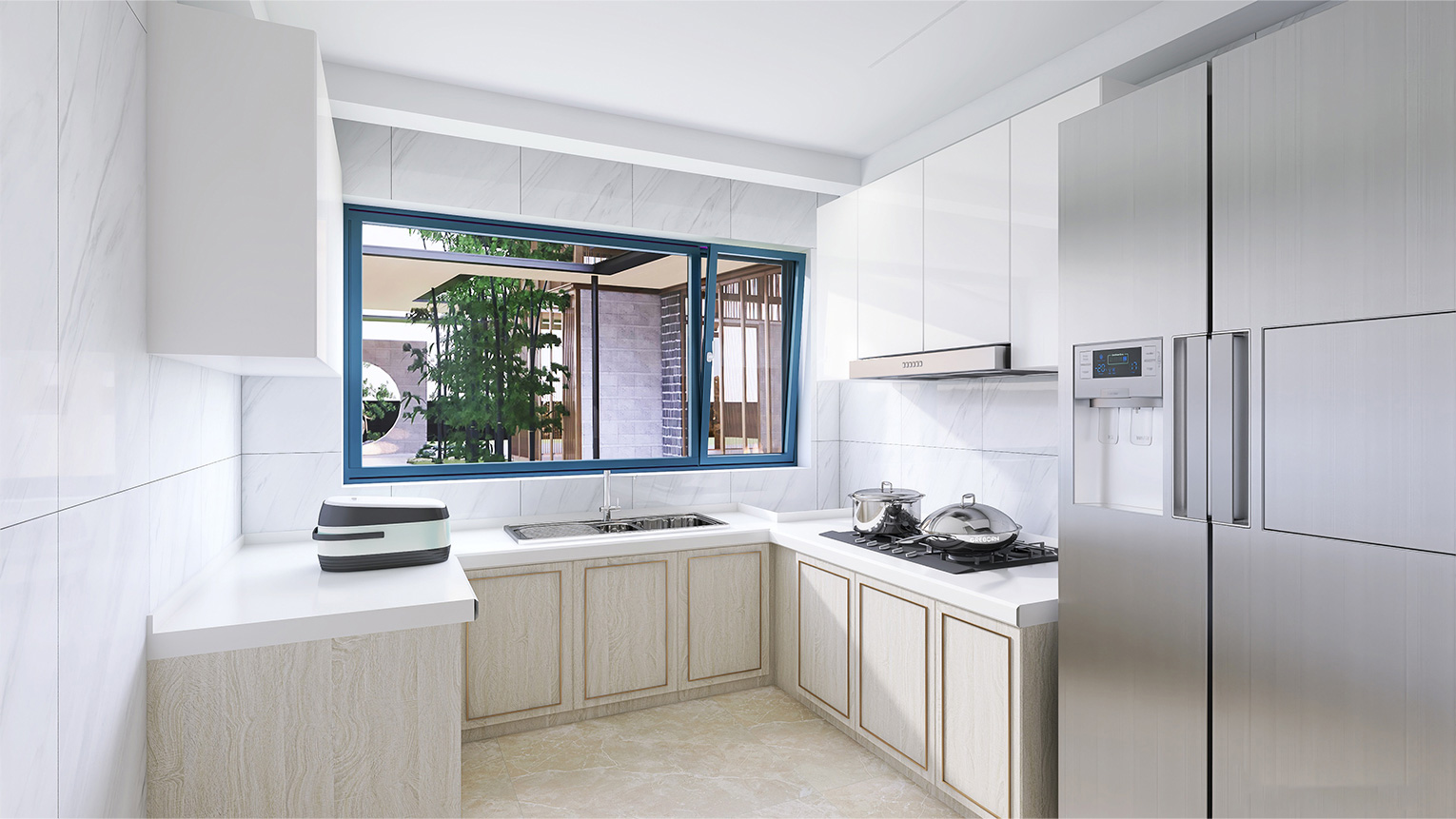

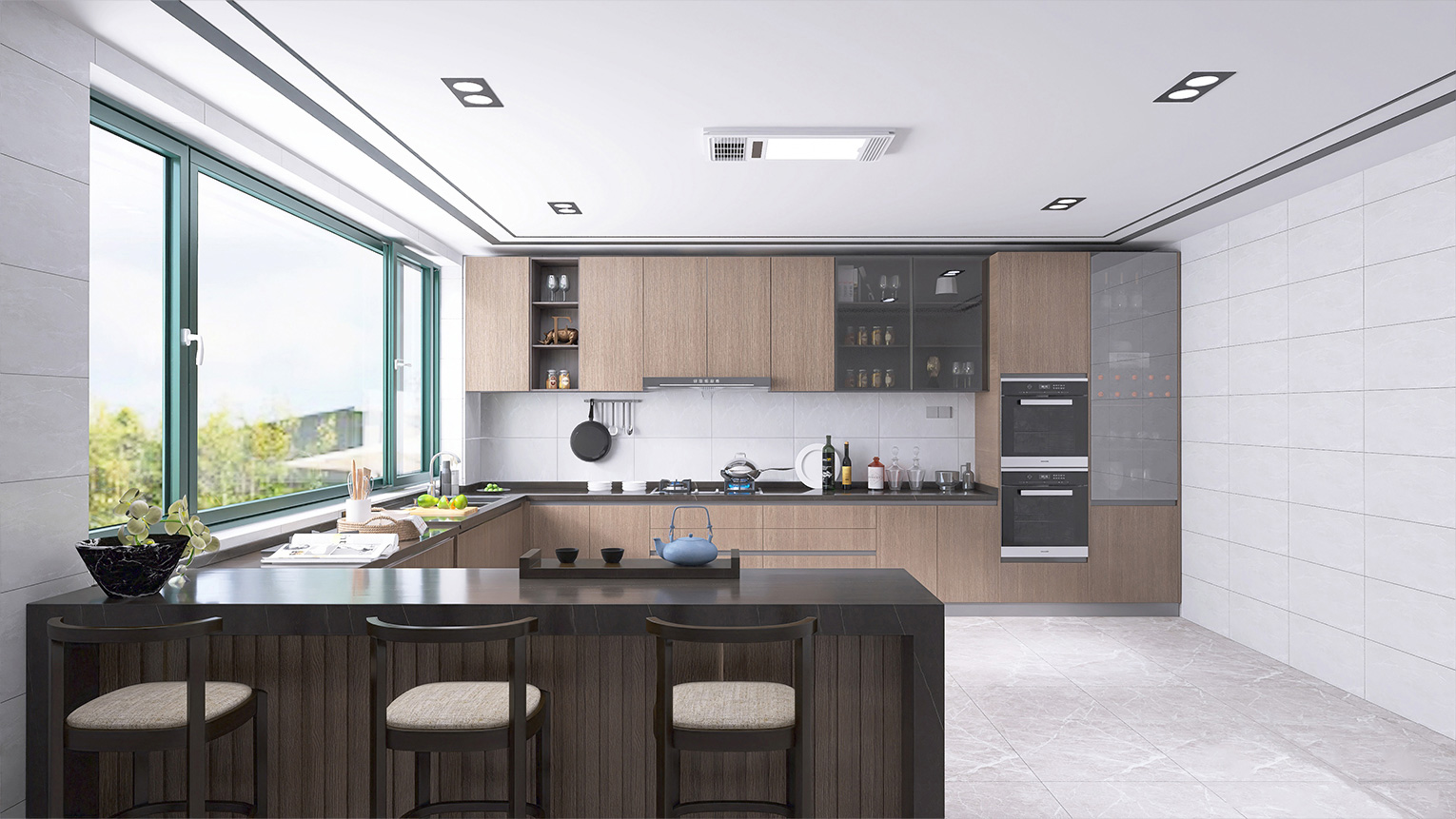

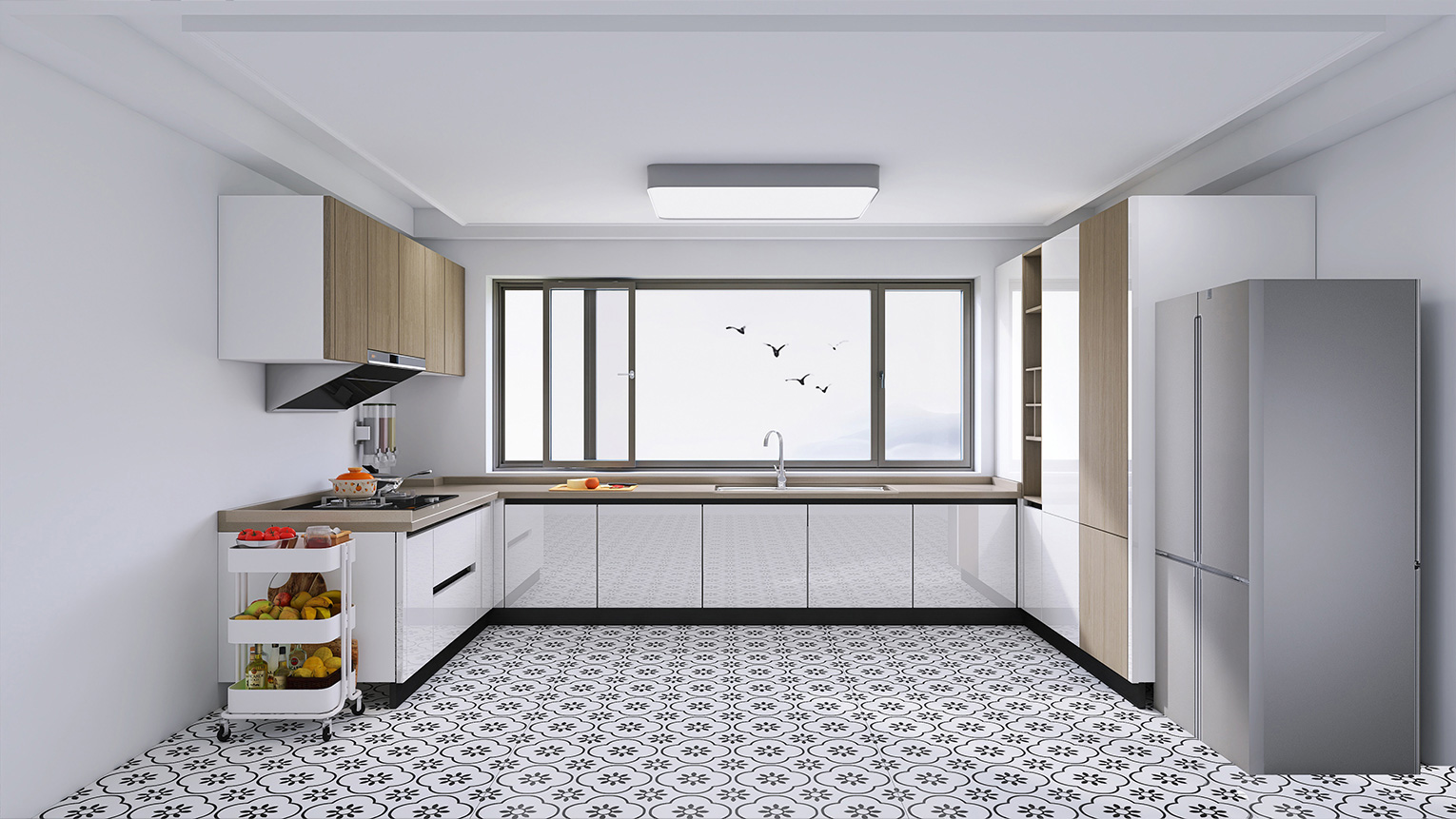

The Tilt & Slide Window combines the practicality of a sliding system with the secure ventilation of a tilt function. In tilt mode, the top of the sash tilts inward for fresh airflow without compromising security. In slide mode, the sash moves smoothly to open fully, maximizing space and views. Built with broken aluminum frames, insulated glass, and premium hardware, it offers energy efficiency, noise reduction, and modern style

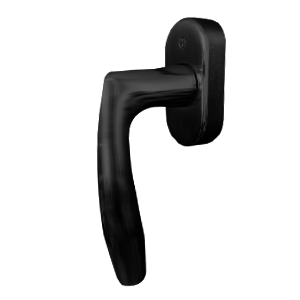

Handle brand
Germany Hoppe Handheld
Hardware brand
MESILO translational inward sliding hardware
Surface treatment
AkzoNobel environmentally friendly powder from the Netherlands
Sealant strip
EPDM sealant strip
Why Us?
Modern Aesthetics
Crafted from premium aluminum, our products embody a sleek, minimal design that complements any architectural style.
Extreme Performance
Engineered for excellence, delivering superior water and wind resistance to withstand even the harshest conditions. Our Thermal Break Technology means more energy saving, and of course, more comfort for you.
Seamless Experience
We want to give you the smoothest operation possible, with effortless opening and closing—just seamless experience.
Key Features
Thermal Break Technology
Broken Aluminum frames with premium insulated glass deliver excellent thermal performance. Standard dual-glazed Low-E tempered glass minimizes heat transfer; optional triple glazing further improves insulation and soundproofing.

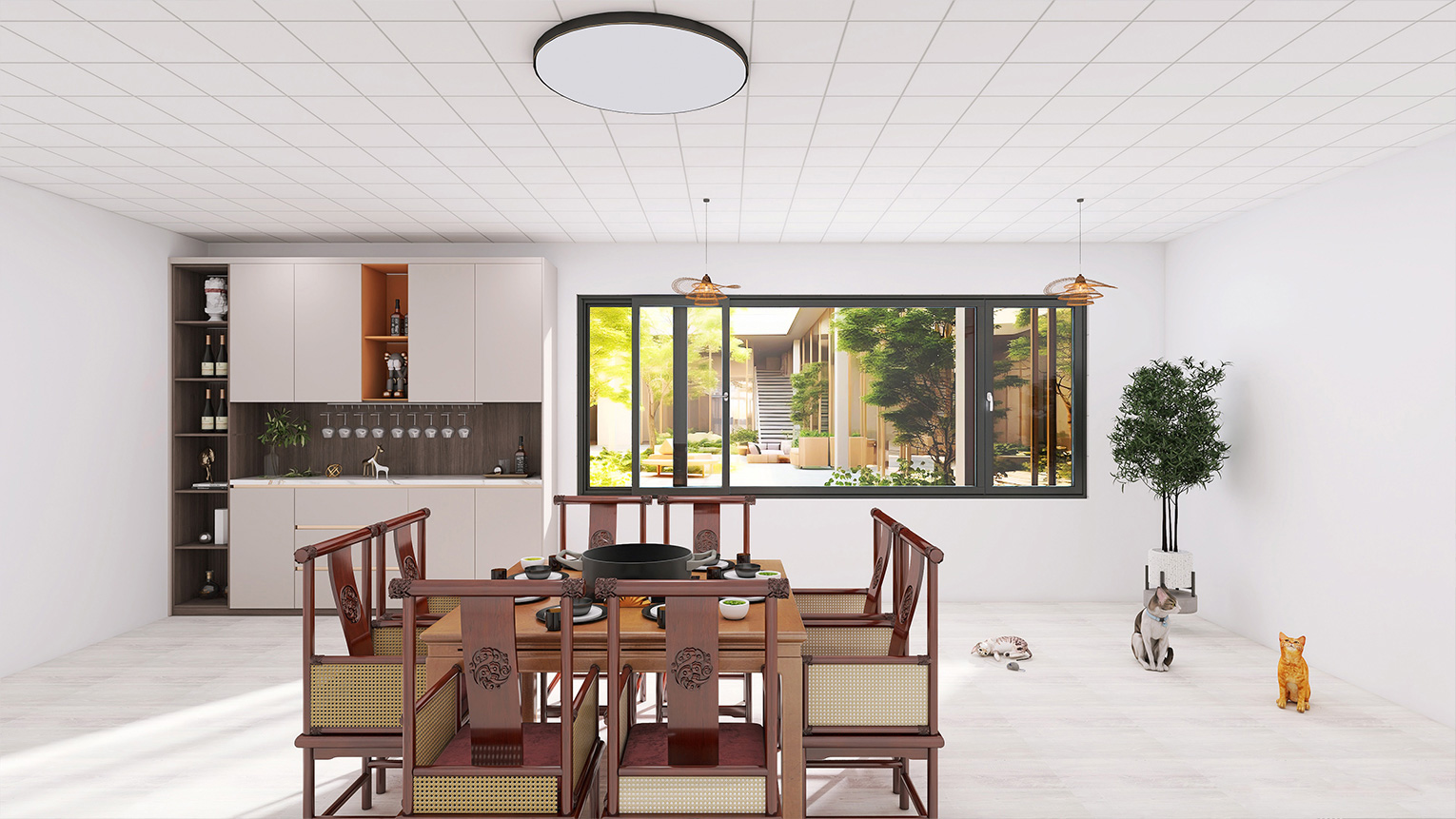

W90 translation inner inverted sliding window
Thermal Control in Every Climate
Precision thermal breaks reduce conductivity, prevent condensation, and keep interiors comfortable year-round.
Energy Efficiency
NFRC certification in progress. Fully compliant with California Title 24. Standard dual-glazed Low-E glass for optimal insulation and reduced heat transfer.
Sound Insulation Efficiency
Multi-chamber profiles, precision gaskets, and insulated glazing provide outstanding sound insulation. Even in tilt mode, much of the outside noise is blocked, making it ideal for urban living.
Performance
Level 9
Wind pressure resistance performance
37dB
Sound insulation performance
Level 3
Water tightness performance
Level 4
Airtightness performance
1.8~2.0W/(㎡.K)
Thermal insulation performance
Hardware
Special tilt-slide hardware from HOPPE and Mesilo ensures smooth transitions between tilt and slide modes, offering both security and ease of use.
Hold hands
Color
Wide range of colors with mix-and-match finish options. Coated with eco-friendly AkzoNobel powder coating for lasting beauty and environmental care.
Silver
Black
Bronze
White
Product Configuration
CONFIGURATION DESCRIPTION
Handle brand
Germany Hoppe Handheld
Product wall thickness
Profile wall thickness 0.0709 inches
Hardware brand
MESILO translational inward sliding hardware
Glass configuration
1.142 inches
Surface treatment
AkzoNobel environmentally friendly powder from the Netherlands
Aluminum profiles
Ultra high precision grade 6060-T66
Sealant strip
EPDM sealant strip
Insulation strip
1.181 inch wide insulation strip
SYSTEM STRUCTURE
Face size
Frame 1.181 inches, fan 2.2 inches
Three seals
The entire window adopts a standard three seal design,Sound insulation and noise reduction, insulation and waterproofing, wind and pressure resistance, energy conservation and environmental protection
Product thickness
Frame 3.543 inches,fan 2.64 inches
Insulation chamber
Maximum design of insulation strip chamber,Rubber foam filling technology can be added to significantly improve insulation performance
Cavity structure
The frame fans are designed with indoor and outdoor dual chamber structures, combined with 45 degree angle cutting and injection molding technology, ensuring stable structure and higher safety.
Lock point lock seat
Multiple safety anti pry locking points are standard for the entire window
Middle Mullion Link
The middle stile connection uses a self expanding double connector design for a more secure connection
Corner code corner piece
Poured solid corner code+stainless steel spiral angle piece design,More secure and sturdy
Drainage structure
The outer view of the frame and horizontal mullion adopts a flat drainage design,Efficient drainage and prevention of rainwater backflow
