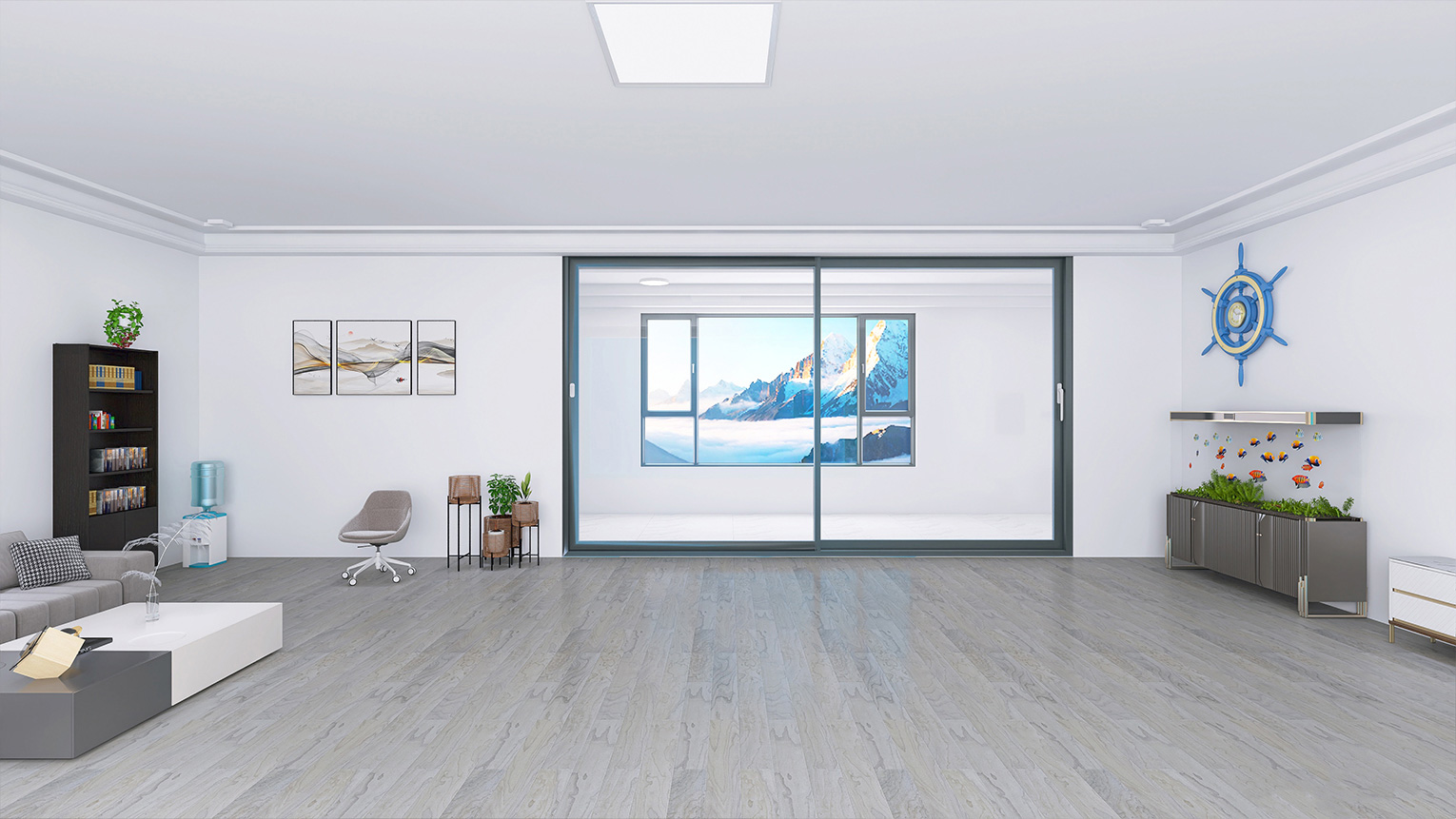

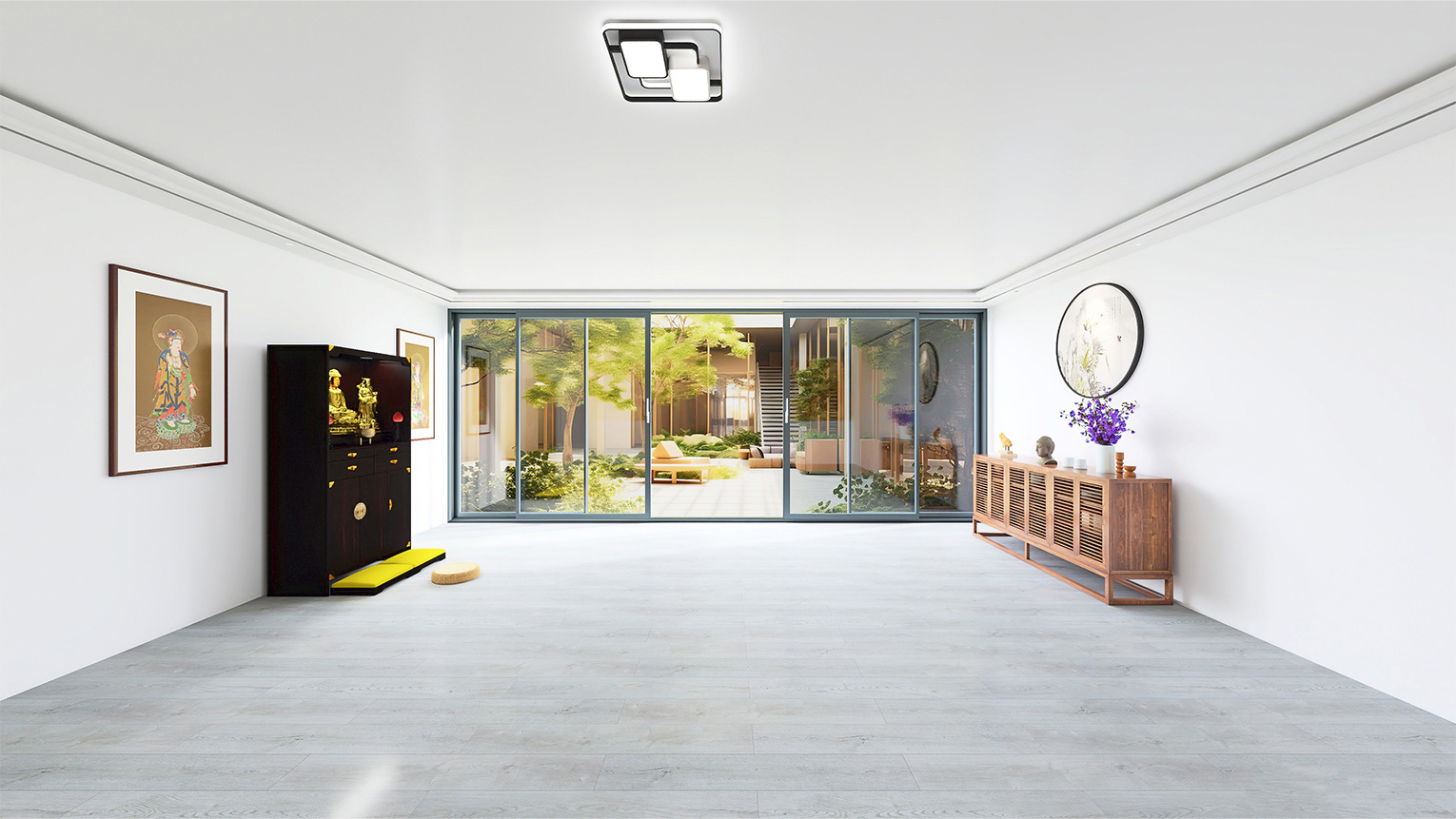

135 Series Sliding Door

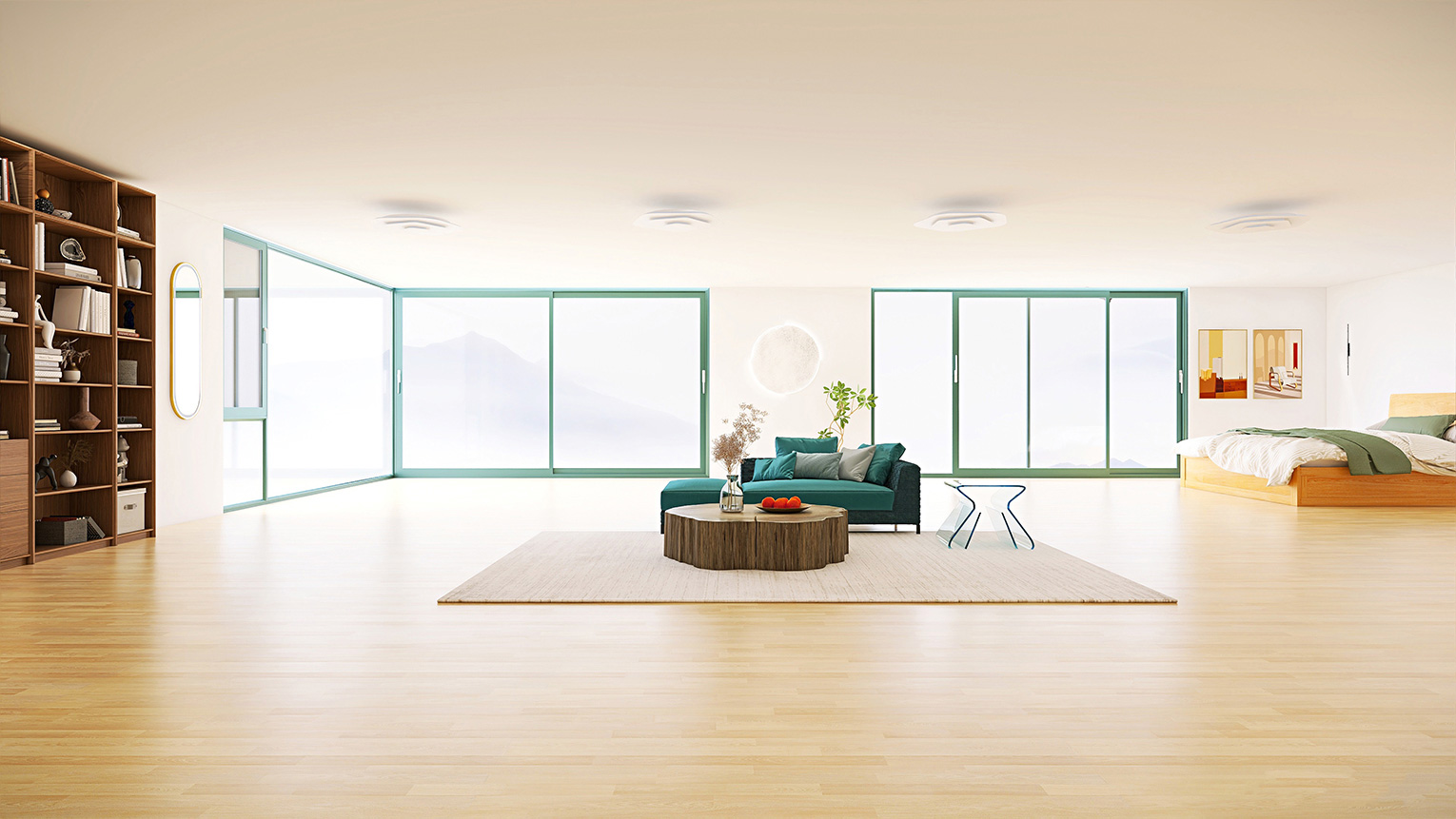

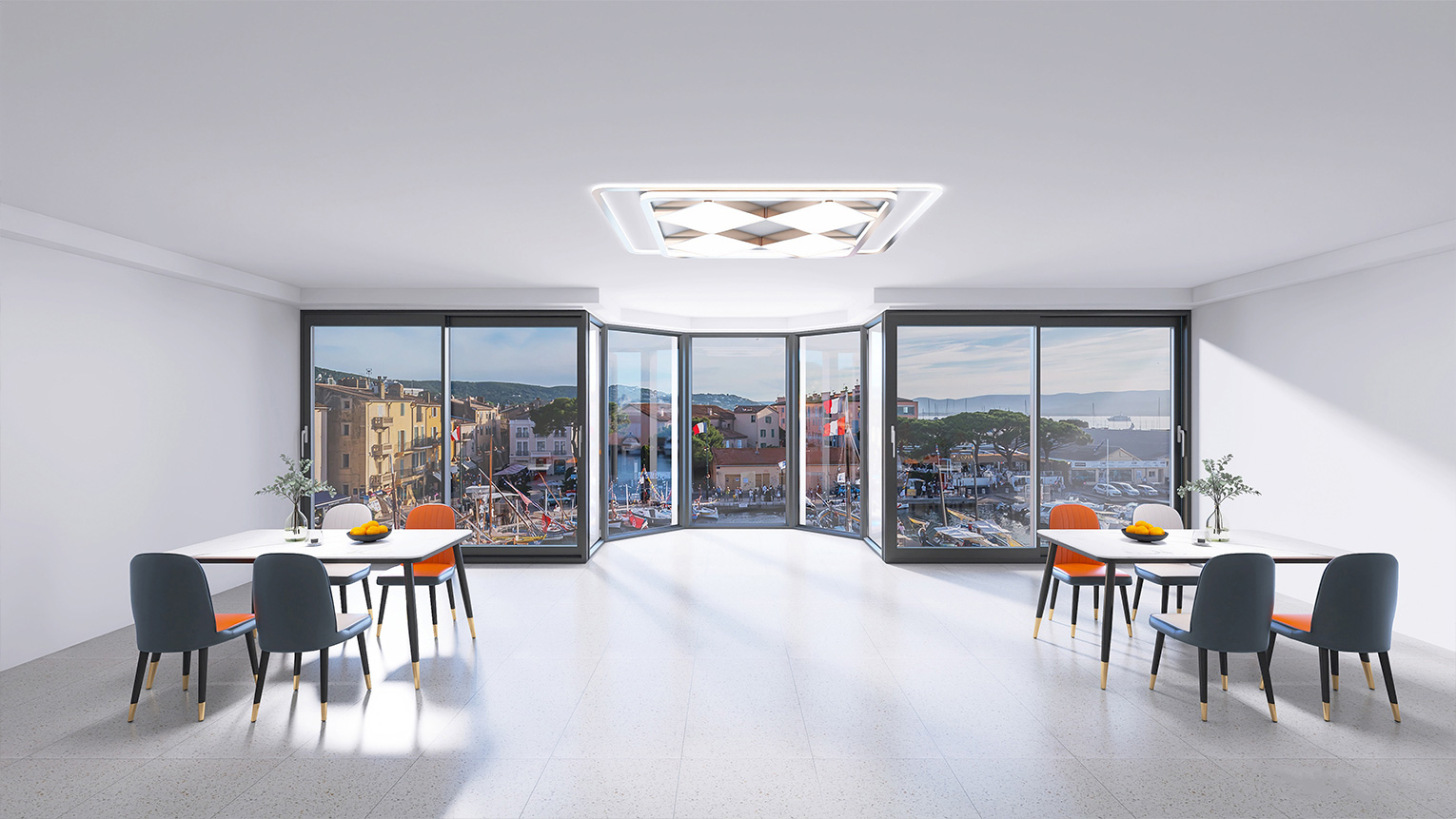

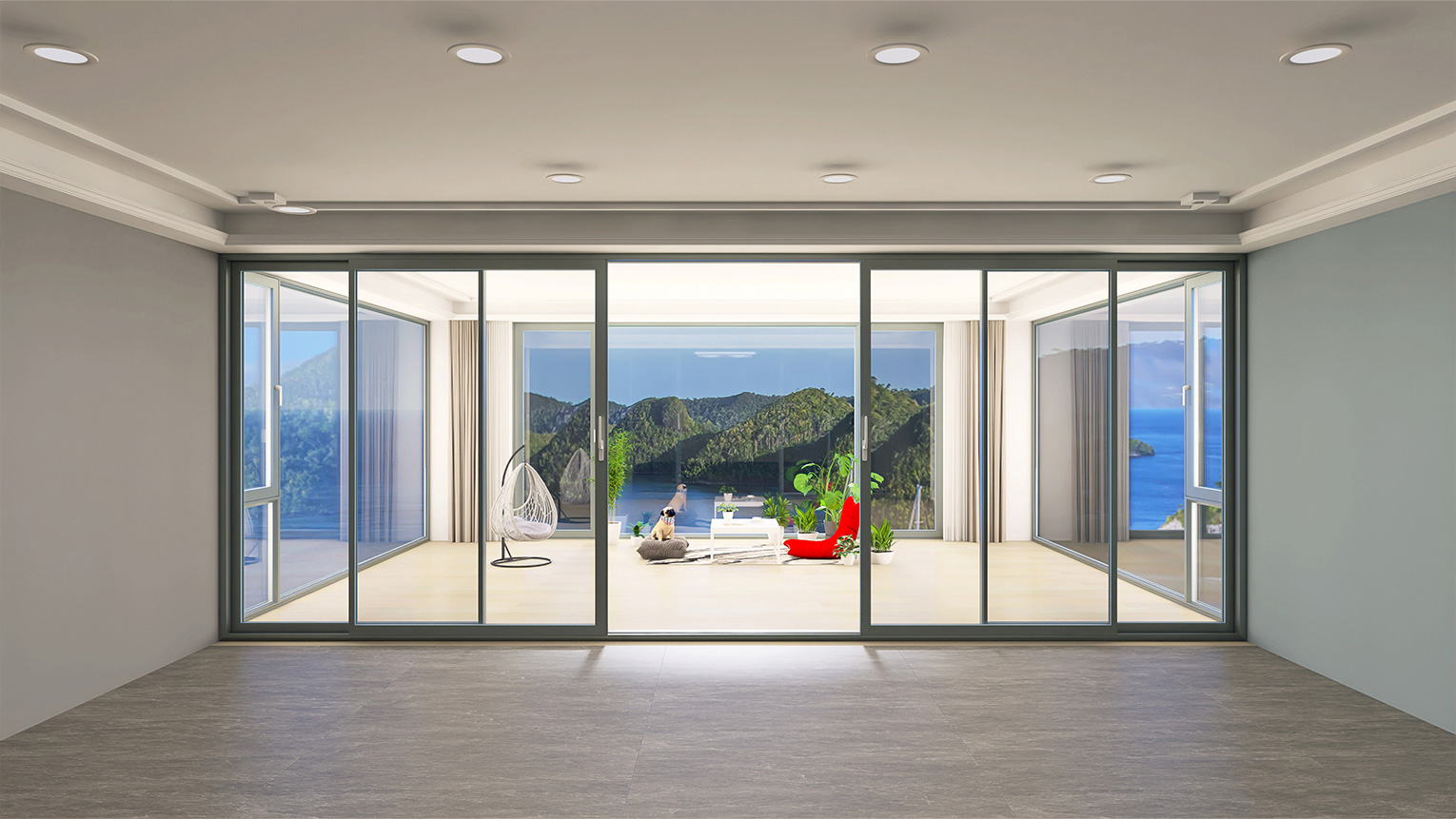

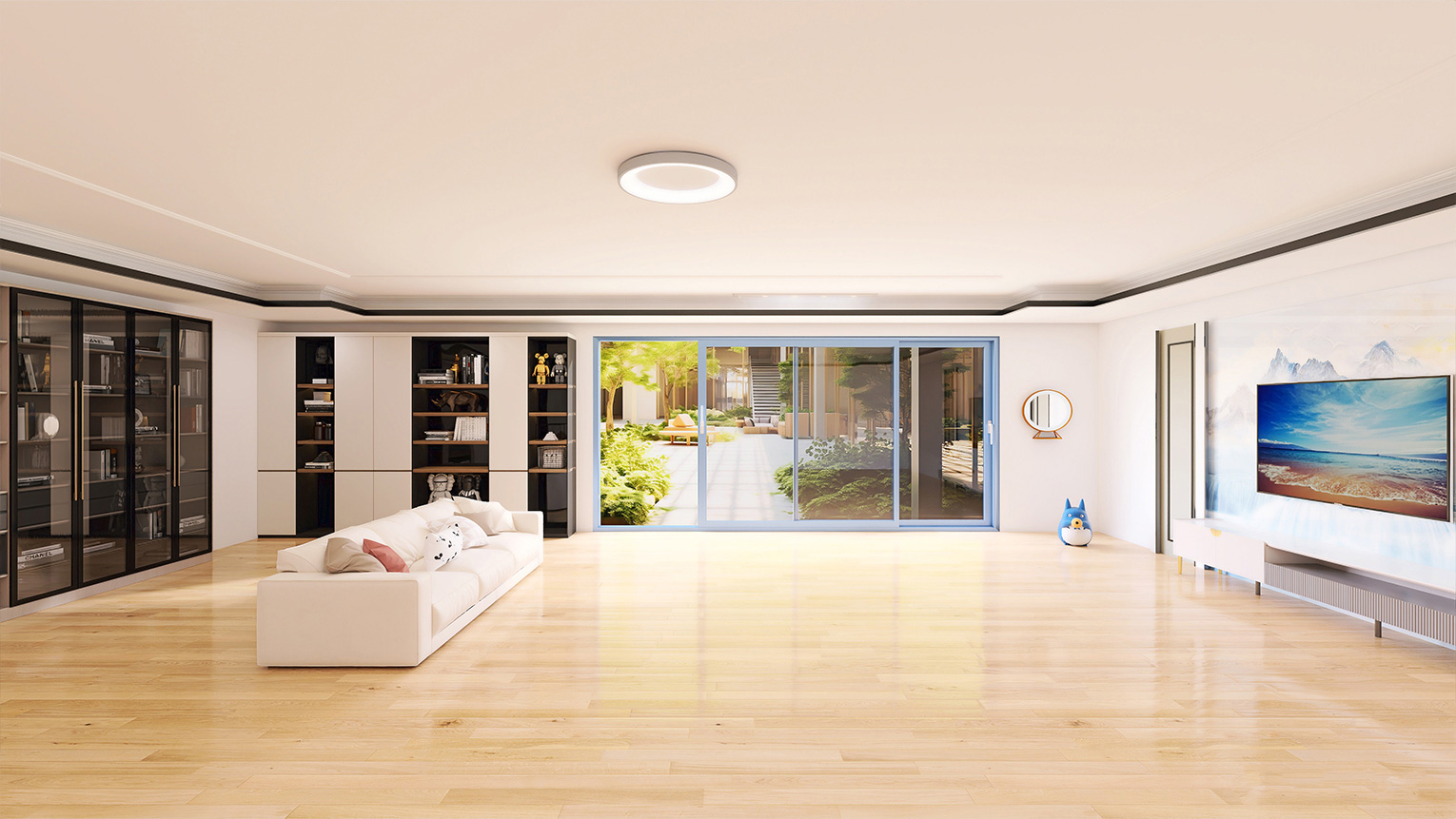

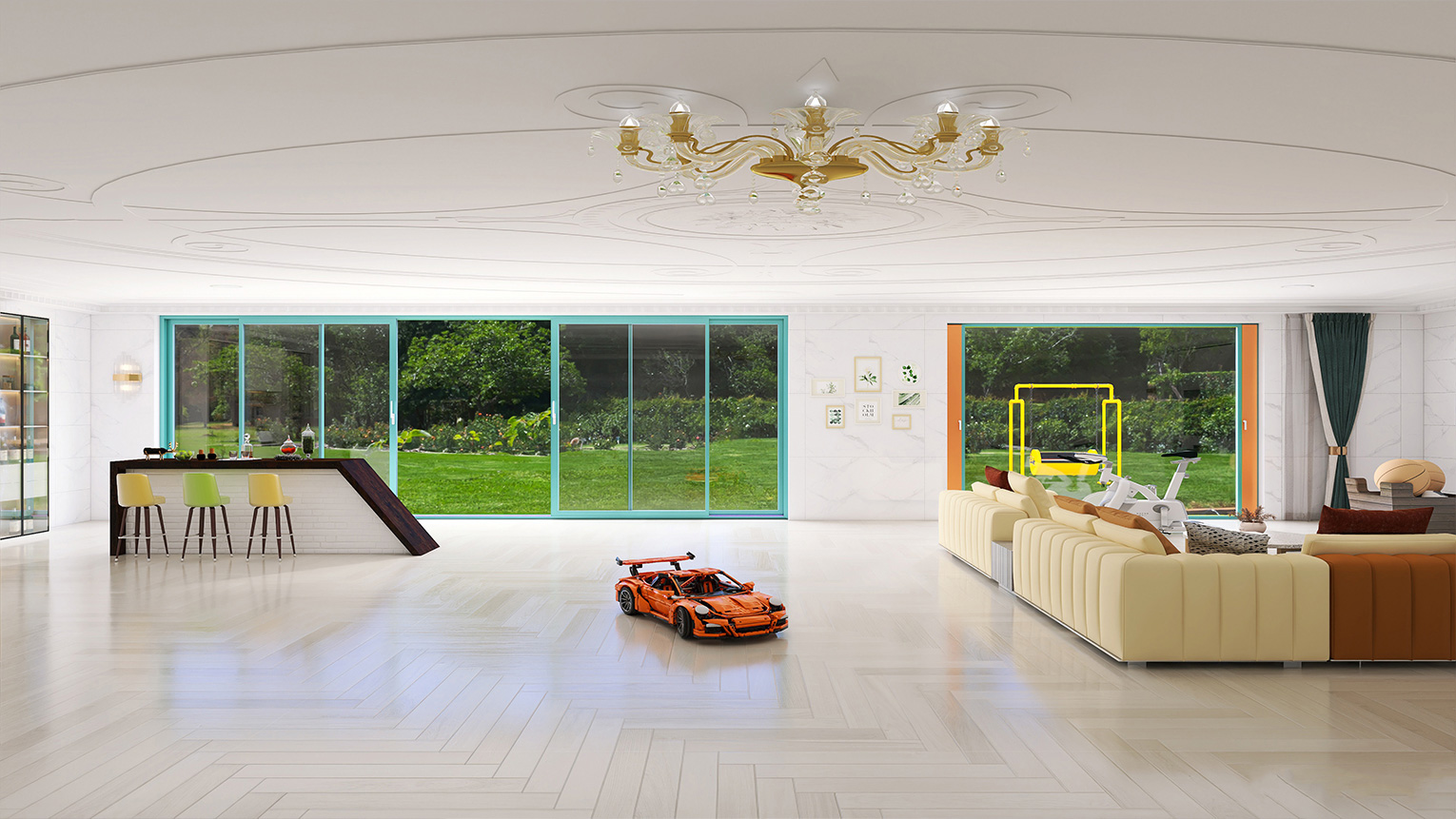

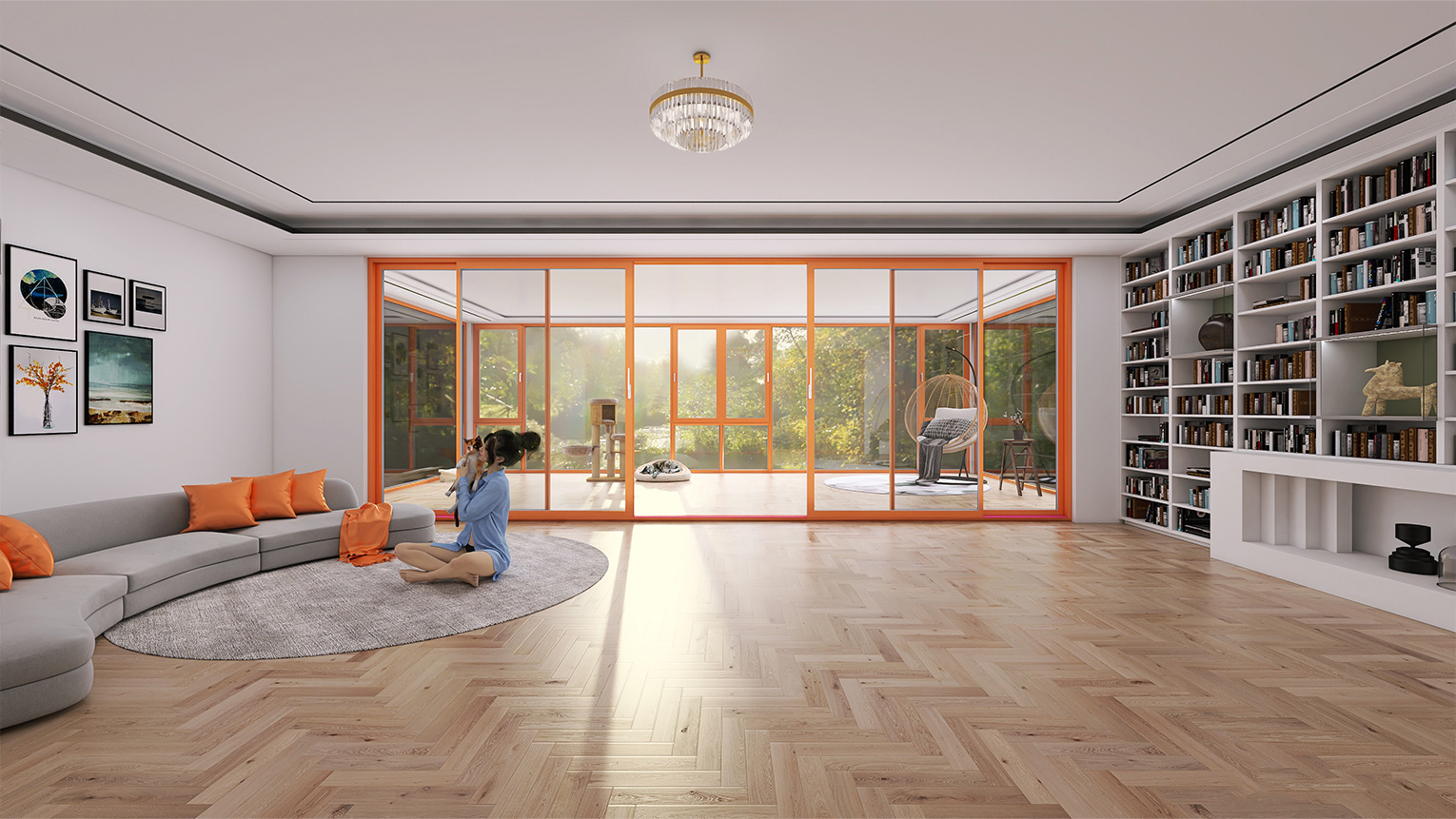

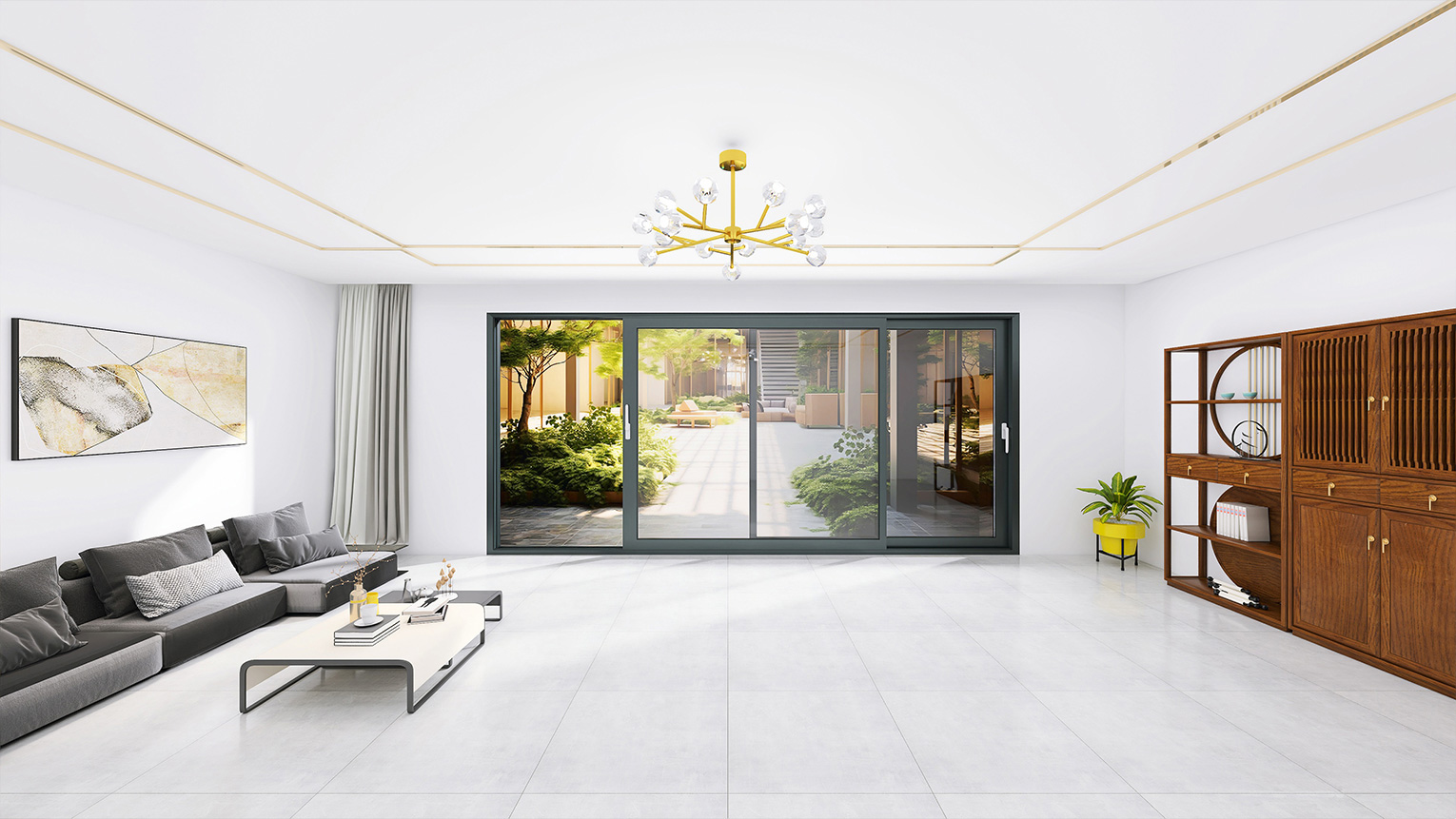

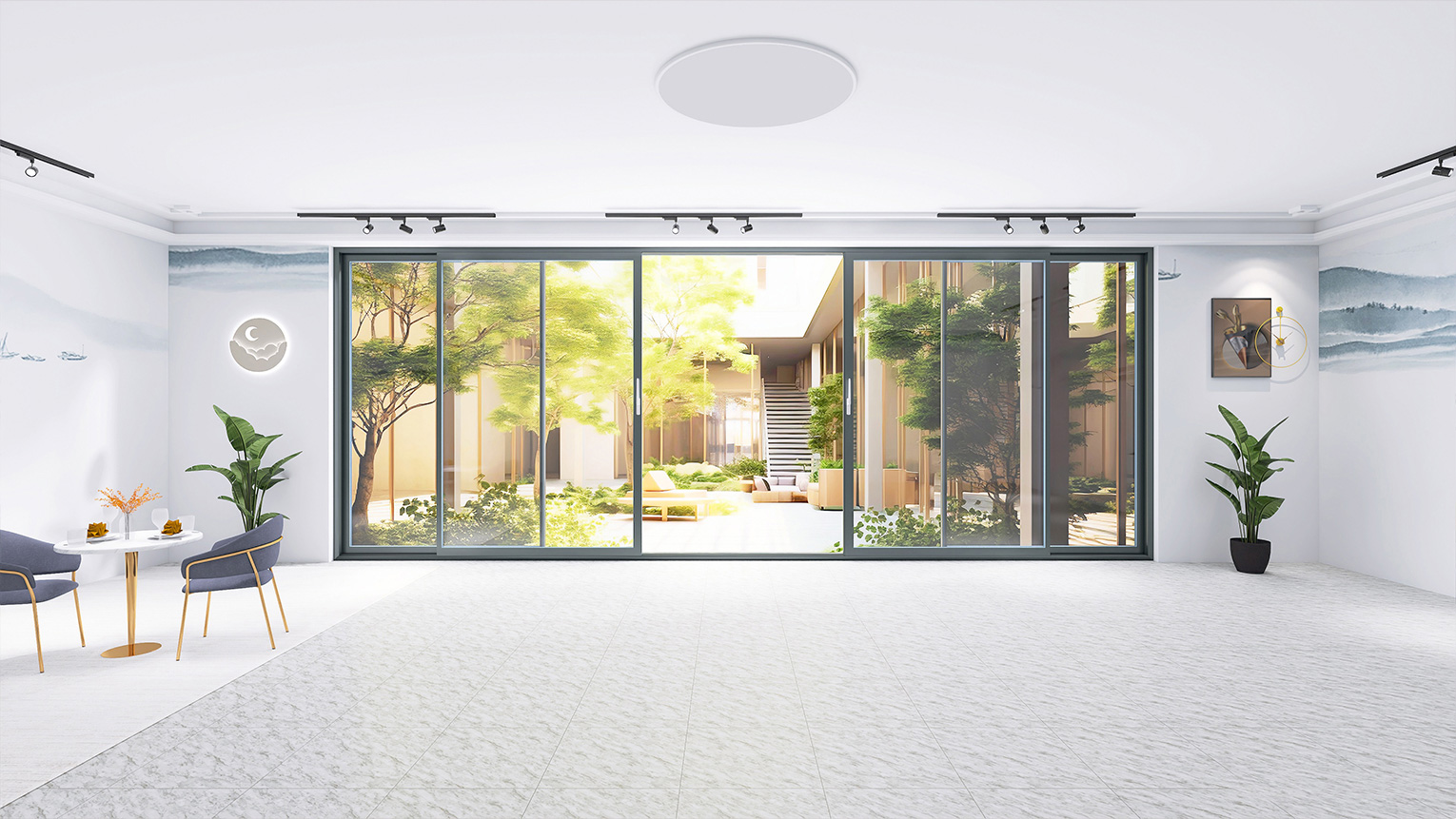

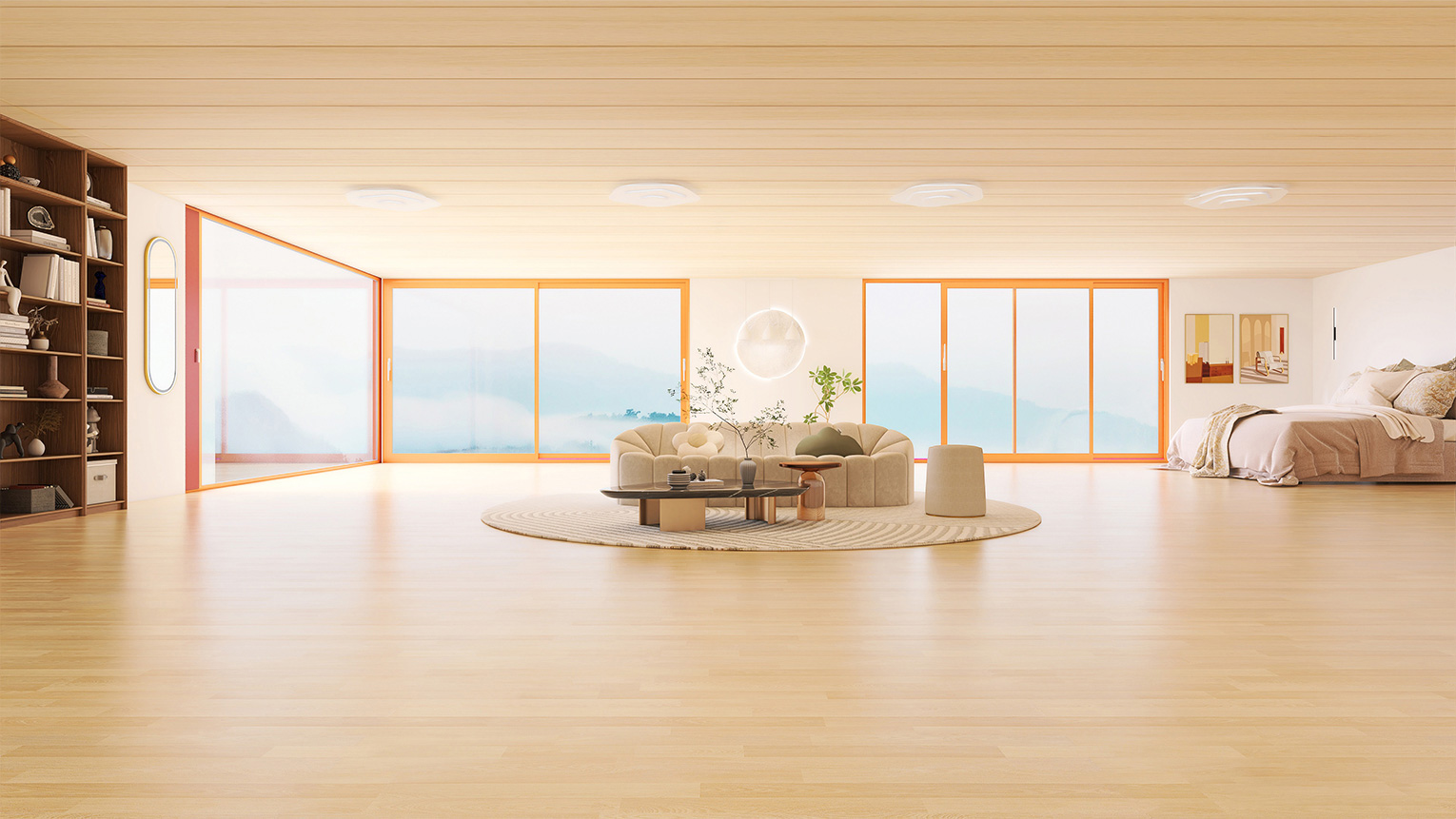

Our Sliding Doors create expansive glass walls that glide open effortlessly, bringing the outdoors in. Designed with premium broken aluminum frames, high-performance insulated glass, and precision-engineered hardware, they offer smooth operation, outstanding durability, and superior thermal and sound insulation. Perfect for spaces where maximizing views and natural light is just as important as saving interior space.
PERFORMANCE GLASS
Greborn Global sliding glass doors feature Cardinal Glass, the world's leading glass manufacturer with the ability to match any door and window package and meet any energy code requirement. Our wide range of glass options provide you with the highest level of comfort and savings year-round and fit for any weather. Offering both dual and triple glaze options, our dual glazed Low-E tempered glass is standard on all Greborn Global sliding glass door systems for better performance. Greborn Global also offers Cardinal's latest innovation Neat Glass, which is easier to clean, lower maintenance and more energy efficient.
THERMALLY CONTROLLED OPTIONS
For maximum protection against cold and hot climates, our thermal breaks offer lower u-factors, limits condensation, increases energy performance and reduces thermal conductivity.

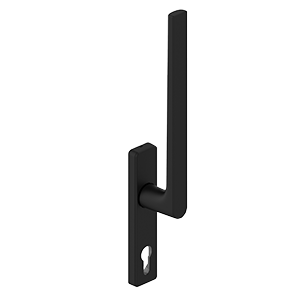

Handle brand
American CMECH push-pull lock
Hardware brand
Sliding door: CMECH Sliding Window Hardware
Surface treatment
AkzoNobel environmentally friendly powder from the Netherlands
Sealant strip
EPDM sealant strip
Why Us?
Modern Aesthetics
Crafted from premium aluminum, our products embody a sleek, minimal design that complements any architectural style.
Extreme Performance
Engineered for excellence, delivering superior water and wind resistance to withstand even the harshest conditions. Our Thermal Break Technology means more energy saving, and of course, more comfort for you.
Seamless Experience
We want to give you the smoothest operation possible, with effortless opening and closing—just seamless experience.
Key Features
Thermal Break Technology
Our Broken Aluminum frames work with premium insulated glass to ensure excellent energy efficiency and comfort. Standard dual-glazed Low-E tempered glass minimizes heat transfer; optional triple glazing and solar-control coatings provide enhanced performance for extreme climates.
Sliding door
Thermal Control in Every Climate
● Thermal break technology minimizes condensation and improves energy efficiency
● Keeps interiors comfortable in both extreme heat and cold
● Ideal for climates with large seasonal temperature variations
Energy Efficiency
● All Sliding Door systems designed to meet California Title 24 energy requirements
● NFRC certification in progress to ensure industry-leading performance
● Dual-glazed Low-E glass standard across the range
Performance
Level 9
Wind pressure resistance performance
37dB
Sound insulation performance
Level 4
Water tightness performance
Level 3
Airtightness performance
1.6~2.0W/(㎡.K)
Thermal insulation performance
Hardware
CMECH Sliding Window Hardware
Hold hands
Color
We curated our wide palette including exclusive signature colors. You have the option to mix and match for a customized look. * All colors are finished with AkzoNobel eco-friendly powder coating from the Netherlands for vibrant, long-lasting color
Silver
Product Configuration
CONFIGURATION DESCRIPTION
Handle brand
American CMECH push-pull lock
Product wall thickness
Profile wall thickness of 0.0709 inches to 0.0984 inches
Complies with the latest national standard GB/T8478-2020
Hardware brand
Sliding door: CMECH Sliding Window Hardware
Electric sliding door: customized electric hardware/infrared sensing/ facial recognition
Lifting sliding door: Sobinco lifting sliding hardware from Belgium+Customized Handle/Sobinco Handle
Glass configuration
1.18 inches
Surface treatment
AkzoNobel environmentallyfriendly powder from the Netherlands
Aluminum profiles
Ultra high precision grade 6060-T66
Sealant strip
EPDM sealant strip
Insulation strip
1.18 inch irregular multicavity insulation strip
SYSTEM STRUCTURE
Face size
Frame 1.77 inches,fan 2.36 inches
Drainage structure
The outer view of the frame adopts a flat drainage design, which has a beautiful appearance
Product thickness
Frame 5.32 inches/Frame 7.28 inches Fan2.16 inches
Sealing design
Sliding rubber strip sealing and independent drainage design significantly improve water tightness performance
Cavity structure
The frame fans are designed with indoor and outdoor dual chamber structures
Collaborate with 45 degree corner cutting and injection molding process
Stable structure and higher safety
Insulation chamber
The maximum design of the insulation strip chamber can be added with rubberfoam filling technology, greatly improving the insulation performance
Corner Link
The corner connection adopts a self expanding pin angle code design, which is firmly connected
Corner code corner piece
Poured solid corner code+stainless steel spiral angle piece design,More secure and sturdy
