75 Series Swing Door
Greborn Global Swing Doors combine timeless elegance with modern engineering. Built with premium broken aluminum frames, high-performance insulated glass, and precision hardware, they offer smooth opening action, secure locking, and exceptional durability. Available in single or double door configurations, they are perfect for both residential and commercial applications, delivering energy efficiency, sound insulation, and refined aesthetics.

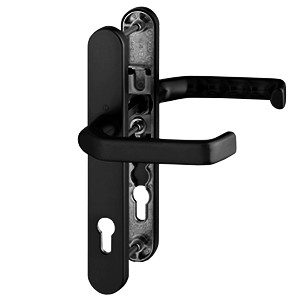

Handle brand
G-U Handle
Hardware brand
Standard configuration: German G-U split lock hardware
Surface treatment
AkzoNobel environmentally friendly powder from the Netherlands
Sealant strip
EPDM sealant strip
Why Us?
Modern Aesthetics
Crafted from premium aluminum, our products embody a sleek, minimal design that complements any architectural style.
Extreme Performance
Engineered for excellence, delivering superior water and wind resistance to withstand even the harshest conditions. Our Thermal Break Technology means more energy saving, and of course, more comfort for you.
Seamless Experience
We want to give you the smoothest operation possible, with effortless opening and closing—just seamless experience.
Key Features
Thermal Break Technology
We combine our Broken Aluminum frames with premium insulated glass to achieve superior energy efficiency and comfort. Standard dual-glazed Low-E tempered glass minimizes heat transfer, while optional triple glazing and laminated safety glass offer enhanced insulation, security, and year-round comfort.
15-L type W75 swing door, Chinese red
15-L type W75 swing door spruce green
15-L type W75 swing door deep red
15-L type W75 swing door with frosted color
15-L Type W75 Flat Door Tiffany Blue

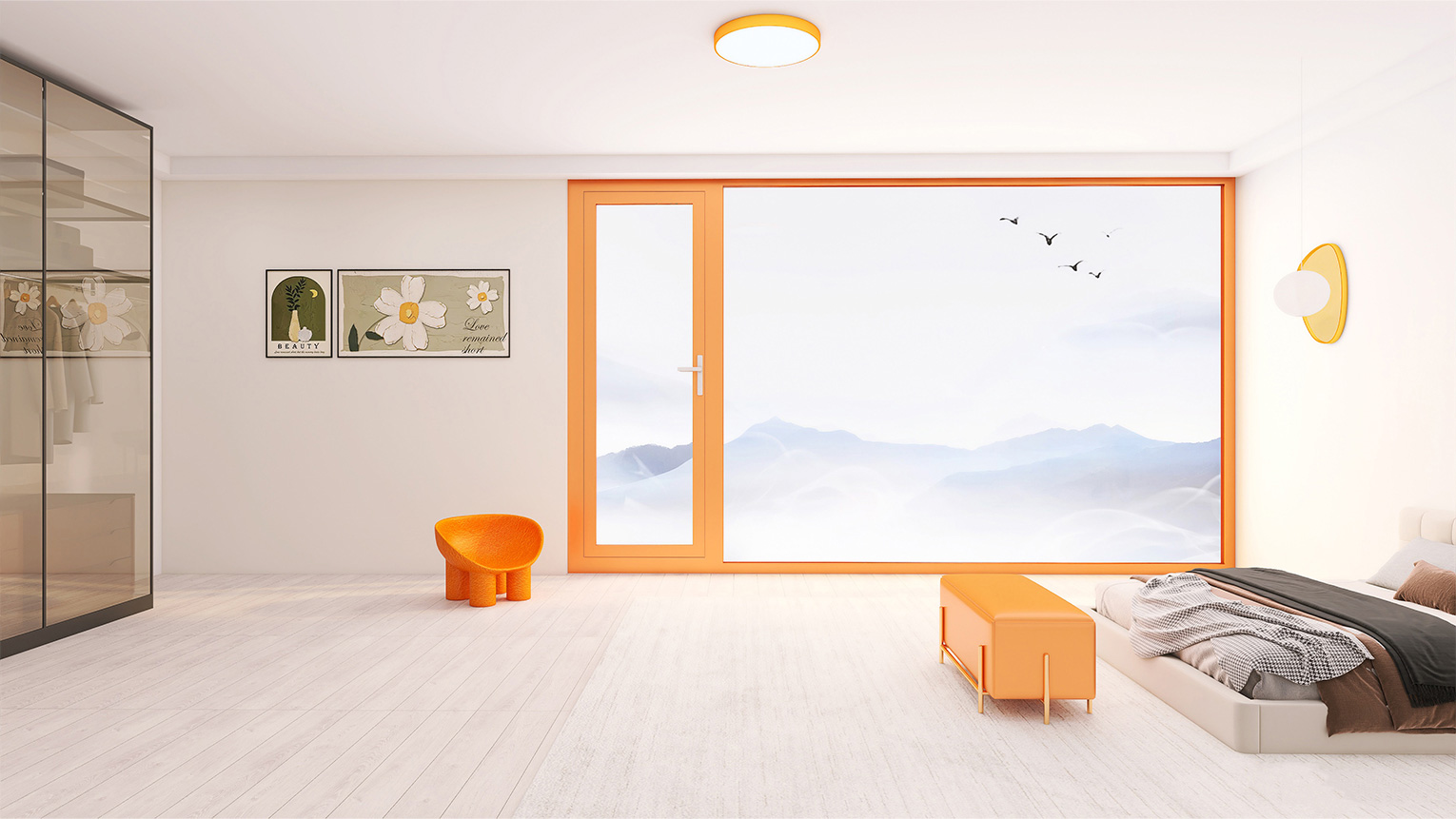

15-L W75 swing door Hermes Orange
Thermal Control in Every Climate
Our Broken Aluminum Technology features a precision-engineered thermal break, reducing thermal conductivity, limiting condensation, and increasing energy performance. Whether in freezing winters or sweltering summers, Greborn Global Swing Doors keep your spaces comfortable and efficient.
Energy Efficiency
At Greborn Global, energy efficiency is built into every design. Our Swing Doors are undergoing NFRC certification and fully comply with California Title 24 energy standards. Dual-glazed Low-E glass comes standard, delivering superior insulation, reduced heat transfer, and year-round comfort without compromising style.
Sound Insulation Efficiency
Our Swing Doors feature dual- or triple-glazed insulated glass, precision-fitted frames, and multi-point locking systems that significantly reduce noise infiltration. They help create a peaceful and private indoor environment, even in busy urban or commercial settings.
Performance
Level 9
Wind pressure resistance performance
37dB
Sound insulation performance
Level 3
Water tightness performance
Level 4
Airtightness performance
1.8~2.0W/(㎡.K)
Thermal insulation performance
Hardware
Standard configuration: German G-U split lock hardware
Optional: Sobinco Hardware or Roto multi-point linkage lock+ HOPPE handle
Hold hands
Color
Choose from a wide range of colors, including exclusive signature finishes, to match your personal style. All surfaces are coated with eco-friendly AkzoNobel powder coating from the Netherlands, ensuring vibrant, long-lasting color with a sustainable touch. Mix-and-match finishes on different panels for a truly customized look.
Silver
Black
Bronze
Product Configuration
CONFIGURATION DESCRIPTION
Handle brand
G-U Handle
Product wall thickness
Profile wall thickness 0.0787 inches
Compliant with the latest national standard GB/T8478-2020
Hardware brand
Standard configuration: German G-U split lock hardware
Optional: Sobinco Hardware
High end configuration: German Roto multi-point linkage lock+German HOPPE handle
Glass configuration
0.984 inches/1.142 inches/1.535 inches
Surface treatment
AkzoNobel environmentally friendly powder from the Netherlands
Aluminum profiles
Ultra high precision grade 6060-T66
Sealant strip
EPDM sealant strip
Insulation strip
1.18 inch irregular multi cavity insulation strip
SYSTEM STRUCTURE
Face size
Frame 2.54 inches, fan 2.28 inches
Three seals
Adopting standard three seal design for sound insulation, noise reduction, insulation and waterproofing, wind and pressure resistance, energy conservation and environmental protection
Product thickness
Frame 2.95 inches, fan 3.35 inches
Insulation chamber
Maximum design of insulation strip chamber,Rubber foam filling technology can be added to significantly improve insulation performance
Cavity structure
The frame fans are designed with indoor and outdoor dual chamber structures, combined with 45 degree angle cutting and injection molding technology, ensuring stable structure and higher safety.
Lock point lock seat
Standard multi-point safety anti pry lock points
Middle Mullion Link
The middle stile connection uses a self expanding double connector design for a more secure connection
Corner code corner piece
Poured solid corner code+stainless steel spiral angle piece design,More secure and sturdy
Drainage structure
The outer view of the frame and horizontal mullion adopts a flat drainage design,Efficient drainage and prevention of rainwater backflow
